The M117.968 560 Engine

The 560 is the ultimate M117 engine.   This family of engines was introduced in 1969 with the 3.5l M116 and was followed in 1972 with the 4.5 M117.   The M117 is a longer stroke version of the M116.   Both engines share a SOHC design, 2 valves per cylinder and always had fuel injection.

These engines evolved over time with the final iteration coming between late 1985 and 1991.  The 560 was the largest M117 engine offered, although to be pedantic it is actually 5.5 litres.  The M117.968 was offered in in the second generation W126 and and is the subject of this article.   The M117.967 was offered in the R107 for USA, Japan and Australia with emissions controls.  It had less power than the contemporary 500 engine.

M116M117Fuel InjectionOtherApplications
1969-1975: 3.51972-1975: 4.5D-Jet EFIIron Block, Mechanical valve adjustmentW108, W109, W111, W116, W107
1976-1980: 3.51976:1980: 4.5K-Jet (CIS) MFIIron BlockW116, W107
1980-1985: 3.81978-1985: 5.0K-Jet (CIS) MFIAlloy BlockW126, W107
1985-1991: 4.21985-1991: 5.0, 5.5KE-Jet (CIS-E) E-MFIAlloy Block, Bigger ValvesW126, W107, W463

The story goes that Mercedes-Benz were concerned that the introduction of the BMW E32 7 series with its 220KW V12 placed the W126 at a competitive disadvantage.    The W140 was apparently delayed to respond with a V12 and the 560 was a short term competitive response.  The 560 is a longer stroke version of the 500.   At the same time larger valves were also specified.  The 560 offers more power than the 500, although the 500 has the reputation of being the smoother engine.

To meet the E32’s specs a high output version of the 560 engine was offered with 220kW.  This engine had a raised 10:1 compression ratio, different cams, ignition timing and an improved exhaust system.  It was coupled with a 2.65:1 rear end, allowing it to deliver similar performance to the E32.   The 2.65 contrasts with the 2.24 ratio used on the 500, and the 2.47 used on the 420.   At first, the high output version was an option, code 822.   It was offered from 10/1985-9/1987 and known as the ECE version.   My 1987 560SEC is the code 822/ECE version.

The ECE version was a start, but more and more markets in Europe required a catalytic converter.   Mercedes offered two versions for this case.   The KAT version had 180kW and had the Catalyst fitted as standard.  The RUF version was set up to allow the catalyst to be retrofitted later and had 200KW.   Both of these versions ran the standard 9:1 compression.

Mercedes still faced a challenge against the E32.   Many European markets required the RUF or KAT version.   Therefore, from 9/87 the RUF and KAT versions were revised.   Compression was raised to 10:1 and other changes introduced, such as knock sensors to retard the timing when necessary.    This made the ECE version redundant, as the RUF version now made 220KW.  The RUF version could still be retrofitted with a catalyst.    The revised KAT version now made 205KW, a useful improvement.  While not the subject of this article, the compression ratio changes were also applied to the 420 and 500 engines, providing a useful power boost.  The 10:1 engines either have HV or E10.0 after their engine numbers.   These improvements were not made to the engines for very strict markets such as Australia, the USA and Japan.

At the same time, code 822 was withdrawn.  This makes it harder to work out what version of the motor is installed in a given car.    You have to know what version was offered in each country and then check which country the car is from.   The main source of high compression cars in RHD countries is the UK and Hong Kong for example.  Increasingly, EU countries required a catalytic converter.

The 560 engine also offered an opportunity to provide more performance in markets with strict emissions laws.   The larger motor still allowed good performance even when de-tuned for idle emissions.    This was particularly important in the all important US market.    The 1984-85 500SEL in US spec only managed 137kW.   The move to the 560 allowed power to be raised to 178-180kW depending on market.   My 1988 and 1989 560SECs were both this version.  The primary destination of this 560 was the USA, but it also formed the basis of the Australian and Japanese versions, with minor changes.

One particularly restrictive element of the US and Japanese M117 is the exhaust system.   There is a crossover pipe that joins the output of both banks of cylinders into a single catalyst.  Upgrading this part of the exhaust system is the simplest way of gaining more power of this motor.  The Australian version did not get this exhaust.

This version of the 560 was equipped with a 2.47:1 rear end instead of the 2.65 used in other 560s.  This was probably due to the US Corporate Average Fuel Economy (CAFE) regulations.   The CAFE regulations imposed fines on manufacturers based on the average fuel consumption of their entire range.

Unlike the other 560 engines, the emissions version never had the compression ratio revisions.   It was the same story with the M116 420.  The rest of world 420 had the compression rise but the emissions version did not.

It was this emissions engine that was the only 560 available in the R107 as the M117.967.   The 560SL was only offered in Australia, USA and Japan.   It is slightly lower in power than the W126 version as the exhaust was even more restricted.  This 560 is referred to as the 117.967.   The use of this engine version is why it is less powerful than the contemporary 500SL.   The big advantage of the emissions engine is that it can run lower octane (91) petrol.

There is some confusion over the exact power ratings of these emissions engines.   The USA workshop manual lists the Swiss and Australian version at 178kW and the USA and Japan version at 180kW.   However, the official spec sheet that was included for the Australian versions lists it as 182kW and with 400Nm of torque, as does the 1987 technical data book.  I am inclined to trust the technical data book and spec sheet.   The exhaust is less restrictive for one in the Australian version.  There is also no EGR.

VersionDates AvailablePowerTorqueCompressionOther Attributes
ECE10/85-9/8722045510:1Code 822, No knock sensors, revised cam, timing
9/87-10/9122045510:1Knock sensors
KAT (US, CH, AUS, J)Entire Series178-182389-4009:1AUS: 182/400

The differences between the engine types are extensive:


The high output versions had ‘tri-y’ exhaust headers.   Essentially the tri-y setup consisted of four piece manifolds that joined under the car into a dual exhaust system next to the transmission.   The mid output versions had ‘euro log’ exhaust headers which was a single manifold for each side, each with a pipe under the car to the exhaust system. When catalysts were fitted, there were two.   The final option was the restrictive system where a crossover pipe behind the engine linked the two manifolds together to enter the single catalytic converter.    The KAT/RUF cars have an oxygen sensor.

The engine photo clearly shows the exhaust manifold from the ‘tri-y’ setup.

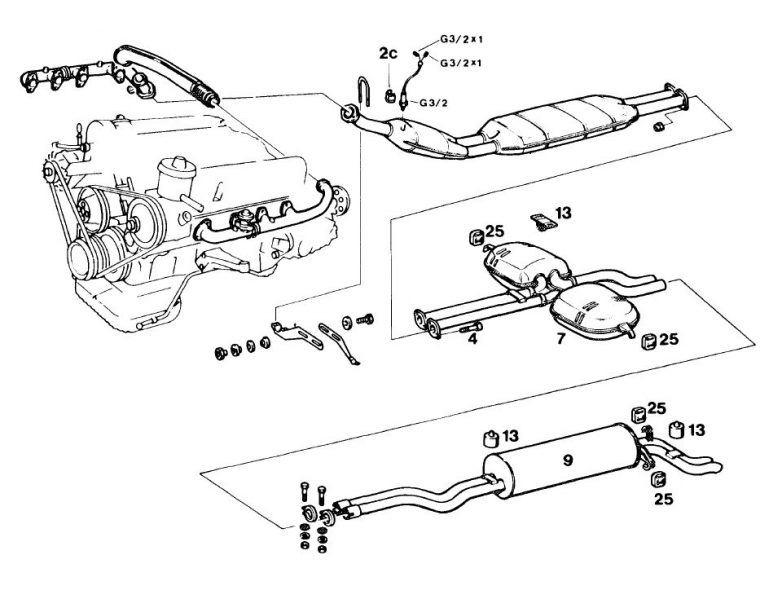

The photo below shows the setup used in the North American version and most likely emissions controlled Japanese version. The crossover pipe and single catalyst can clearly be seen.

The regular catalyst version was a bit of a hybrid of the two, with a less restrictive manifold setup.   This was also the exhaust used for the Australian version.


All models used EZL based ignition, but the map was different.   The mid and high output models had a switch to allow the engine to be de-tuned for poor fuel.    The emissions controlled models were not switchable.    The high output motors have a more advanced ignition, and the later (post 9/87) cars have knock sensors.   As the early ECE versions do not, they require 98 octane fuel.

The ECE (Code 822) versions carried the following sticker on the radiator support:


High output engines have different camshafts with ECE, RUF and KAT camshafts all having different part numbers.

The ECE Camshafts have code 16/17 (Left/Right).   RUF are 24/25 and USA is 26/27.    The ECE and RUF cams have the same profile.


  • The strict emissions version has an air pump for some markets such as USA.
  • The high output motors also have a different fuel distributor, same as the the early R129 500SL.
  • All 10:1 compression engines have high compression pistons.

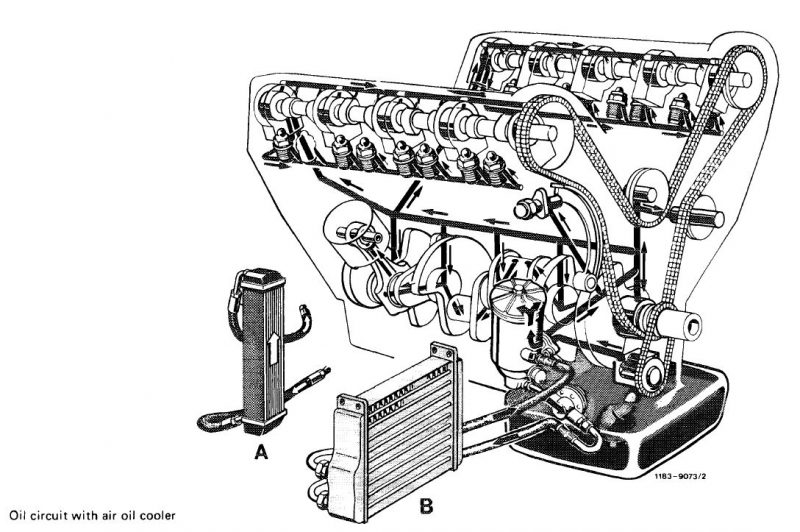

  • The high output models have a separate oil cooler and pump.   This is located at the front left of the car.  The image below shows the extra oil cooler marked as B.
  • High output models have a different (black) transmission modulator
  • Transmissions were the same on all models.   Starting with the 722.323 and then later the 722.350.   The .350 transmission was improved over the 323.  I have read that the high output engines had a reinforced transmission, but have not seen any factory evidence so far.

Unlike other Mercedes engines, all versions of the 560 are good.   Even the emissions versions have plenty of power and are a delight to drive.   The M117 has an almost bullet proof bottom end, but an Achilles heel in some plastic parts in the engine.  If these parts fail, it is not economically viable to fix the engine.

25 comments to The M117.968 560 Engine

  • Martin

    Hi, great article!,

    I have an ’87 ECE 560, bought it last year, in good condition but improving bits as I make time,
    Quick question to anyone in the know, my ECE engine with Tri-Y headers have a catalytic convertor on it, I know it shouldn’t and am intending to take it up once garages open up again (Corvid 19 lockdown in Ireland),
    What would be the symptoms of a cat on the exhaust?
    (I notice a really (really really) annoying tick from the exhaust/engine from 1500-2500RPM), could the cat be blocking the engine exhaust gases and causing the tick?

    Stay safe,

    • admin

      A modern, high flow cat probably doesn’t make a massive difference, but during the 80s, there was a significant power loss. Hard to diagnose a tick remotely, but do you have an exhaust leak? A Cat will normally make a rattling sound if its all blocked up inside.

      Good luck with your car.

  • There is a power output difference between the strict emissions variant (e.g USA) which has a 178kW rating and the lighter emissions variant (e.g Australia) which has a 182kW rating. The electronic parts catalogue makes no mention of the 182kW output, but the official tehcnical data literature from Mercedes-Benz does. Please contact me and I’ll send through copies of the tech data sheet for the Aus cars.

  • Dean

    What an informative post, I never really know that the Australia have a restrictive emission regulation similar to USA, Japan and Switzerland.

    By the way, is the Canadian spec cars follows the US specification in terms of engine version?

    • admin

      I understand the Canadian versions are pretty much the same, but they are not called out specifically in any of the factory literature I have so I can’t confirm.

  • Phil Dimitratos

    I would like to buy a 300 hp560 RUF ECE ENGINE FROM WHERE CAN I GET ONE I LIVE IN NEW YORK … Thank you

  • oskare2345

    560 S for Switzerland had 9:0 compression ratio.

  • Pawit B

    I have 560sl R107 Japanese spec. Last year I changed camshafts to ECE spec. Is it a good idea to change all pistons from 9 to 10:1 compression ratio? Any problem should I aware?


    • admin

      I guess you could but unless the motor needs rebuilding anyway, it would be a huge expense for a small gain.

      best gain would be the exhaust manifolds and exhaust system.

  • Pawit B

    How much the difference between the existing crossover pipe to tri Y setup?

    Thanks again.

    Pawit B.

  • Jarrod

    Hi guys,
    I recently purchased a 86 SEL560 and not sure where to find the engine number, can you help please?
    Oh and another thing parts for these things in Australia
    Thanks in advance.

    • admin

      It can be hard to see.
      Its at the back of the engine, you can look down at the firewall and it should be visible. easier to see with the air cleaner removed, but with a phone torch, you should be able to see it even with the air cleaner there.

    • admin

      Parts in Australia getting harder now MB Spares don’t do parts and Silver star don’t do classics.
      I normally get mine from overseas.

  • Russell

    I have 560sel I have been trying to find the spec on my motor if someonre could steer me in the right direction this is my engine number M11796822034160

    • admin

      Unfortunately the engine number alone won’t tell you. You need to have the VIN of the car to check the model it was installed in, year of sale etc and possibly options.

  • […] have owned three 560SEC‘s and they make great daily drivers.    The 560 gives great power even in the emissions compliant version made available to Australia and the USA.  (the picture […]

  • […] many enthusiasts seek out the higher power imported 420, 500 and 560SEC models, especially the later ones with 10:1 compression.   There is a notable difference in seat of the pants performance and more interesting options […]

  • […] second series are improved from the first.    More detail can be found here on my article on the 560 engine.  The EZL (ignition module) on the later engines is a bit more problematic and can fail.   It […]

  • […] back.   In a perfect world, I would have obtained a set of the two piece manifolds as found on my 560SEC ECE.   Those manifolds are very expensive, so I went with what I had.   There are only two joins […]

  • […] There are countless threads on the various Mercedes forums like BenzWorld and PeachParts about this resistor and various attempts at changing it.   Most of these attempts are for the W124 and nearly all of them concern the USA version.   This made me think about what this might mean for the Australian version.   The Australian version has slightly more power than the USA version.   However, it has no EGR, no smog pump, and a far less restrictive exhaust system.    The other difference is that the USA version is set up for 95 Octane petrol and the Australian version for 91.  For more details on all these differences, please see this article. […]

  • […] new rage topping 560SEC was introduced.   I’ve covered the story of the 560 engine in this article.     Not only was the 560 the flagship, it was also the only one offered in the United States.  […]
